Changtan Borehole Drilling Machine 200m Drilling Rig Equipment With Electric Motor

China Changtan Borehole Drilling Machine 200m Drilling Rig Equipment With Electric Motor supplier

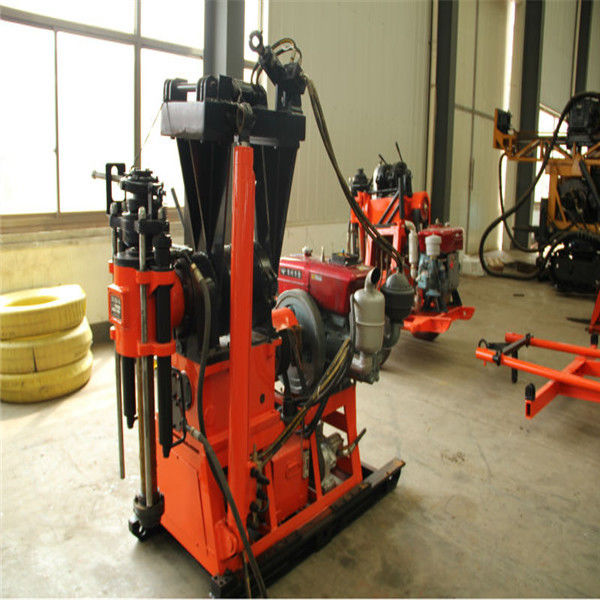

Large Image :  Changtan Borehole Drilling Machine 200m Drilling Rig Equipment With Electric Motor

Product Details:

Place of Origin: CHANGSHA HUNAN
Brand Name: CHANGTAN
Certification: SGS/CE/ISO9001
Model Number: GY-200-2A

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET
Price: 3600USD-8000USD
Packaging Details: Exported wooden box
Delivery Time: 7-10 working days
Payment Terms: T/T L/C
Supply Ability: 100 SETS/MONTH
Contact Now
Detailed Product Description
Drilling Depth: 280m Drilling Diameter: 300mm
Power: Diesel Engine/electric Motor Brand: Changtan
Type: Rotary Drilling Rig
Highlight:

borehole drilling equipment

,

geotechnical drilling equipment

Changtan Borehole Drilling Machine 200m Drilling Rig Equipment With Electric Motor



GY-200-2A/GY-200-2T/GY-200-1G/GY-200-2DT DRILLING RIG

  • Large torque, powerful drill in a light and small size.
  • Multiple speed grades in forward & reverse revolving, meeting different drilling requirements.
  • Rotary drilling and cable percussion drilling.
  • Spindle can turn 360°range.
  • Frame retraction function for easy connection and replacement to drilling tools.
DRILLING CAPACITY Depth 225m / 50; 200m / NQ
SWIVEL HEAD
Type Twin cylinder, Oil-hydraulic feed system, Spindle type
Angle Range 360°
Stroke of Spindle 400mm
Revolving Speed of Spindle Forward 900 475 388 205 157 68 r.p.m
Reverse 256 85 r.p.m
Max. Spindle Torque 2000N*m
Max. Thrust Capacity 29 kN
Max. Balance Capacity 39 kN
AVAILABLE RODS 50mm, AW, BW,BQ,NQ,HQ
FRAME RETRACTION 400mm
HOIST DRUM
Type Planetary grear, hand brake type
Hoisting Capacity 30 kN at single pull line
Rope Speed 0.27 0.64 0.83 1.58 1.64 m/s at single pull time
Drum Capacity Φ12.5mm × 30m
OIL - HYDRAULIC
Type Constant delivery, gear type pump
Delivery Capacity 33L/min @ 1650r.p.m
Max. Pressure 25MPa
POWER Diesel engine ZS1110, 14.7KW at 2200 r.p.m
  Or electronic Motor, 15KW at 1460 r.p.m
NET WEIGHT

670kgs (without power GY-200-2A/2T/1G)

750kgs (without power, GY-200-2DT)
DIMENSION(L×W×H) 1820 ×980 ×1400mm
GY-200-2T HYDRAULIC TOWER SYSTEM

6.8m effective hoist height @ 2.4*2.2*7.48m

Effective Drill Angle 45°-90°

550kgs
GY-200-2DT WIRELINE CHUCK

No Kelly Bar is required.

Use HQ, NQ rods and NW casing directly.





Changtan Borehole Drilling Machine 200m Drilling Rig Equipment With Electric Motor
