Three Cylinder Hydraulic Impact Drilling Mud Pump / Reciprocating Plunger Pump
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Pressure: | 4-10Mpa | Suction Pipe Dia: | φ76mm |
|---|---|---|---|
| Discharge Pipe Dia: | φ51mm | Displacement: | 66-320L/min |
| Highlight: | electric mud pump,reciprocating plunger pump |
||
Three Cylinder Hydraulic Impact Drilling Mud Pump / Reciprocating Plunger Pump

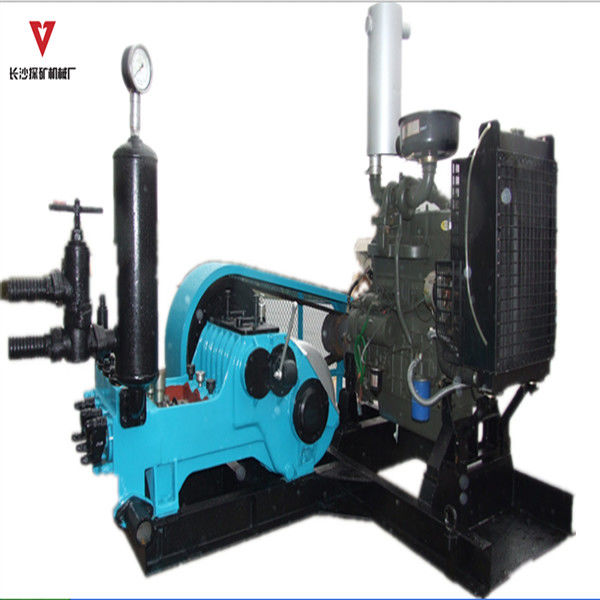

BW-320 MUD PUMP
BW-320 is a horizontal triplex single action reciprocating plunger pump. It has two kind of cylinders and four gear speed grades which brings 8 different displacements. It can be used for hydraulic impact drilling pump within depth 1000 meters, also can be used for auger drilling, turbo drilling within 1500 meters, as well as supplying mud flush for core drilling within 2500 meters.
| Cylinder Diameter | 110mm | ||
| Stroke | 80mm | 60mm | |
| Pump Speed | 214 153 109 78 | 214 153 109 78 | times/min |
| Displacement | 320 230 165 118 | 180 130 92 66 | L/min |
| Pressure | 4 5 6 8 | 6 8 9 10 | Mpa |
| Volumetric Efficiency | 90% | ||
| Total Efficiency | 78% | ||
| Input Power and Speed | 30 kW @ 535 r.p.m | ||
| Suction Pipe dia | 76mm | ||
| Discharge Pipe dia | 51mm | ||
| Dimension & Weight |
1280*855*720mm, 650kgs – without engine 2200*1560*1420mm, 1100kgs – with diesel engine 1905*1100*1200mm, 1000kgs – with electricity motor |
||
