1.4Mpa Drilling Mud Pumps Double Acting Reciprocal Piston Pump
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Pressure: | 1.4Mpa | Suction Pipe Dia: | φ38mm |
|---|---|---|---|
| Discharge Pipe Dia: | φ25mm | Displacement: | 120L/min |
| Highlight: | drilling rig mud pumps,mud pumps for drilling rigs |
||
1.4Mpa Drilling Mud Pumps Double Acting Reciprocal Piston Pump

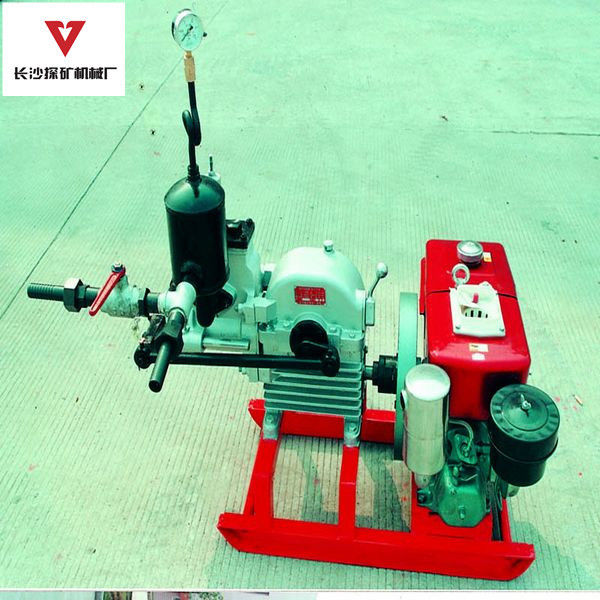

BW-120QF MUD PUMP
BW-120QF mud pump is a horizontal, single cylinder, double acting reciprocal piston pump. The pump is small, light, very suitable for transportation.
| Cylinder Diameter | 80mm |
| Stroke | 120mm |
| Reciprocate Times | 126 times/min |
| Displacement | 120L/min |
| Pressure | 1.4Mpa |
| Suction Pipe Dia | φ38mm |
| Discharge Pipe Dia | φ25mm |
| Dimension & Weight | 1030*570*780mm, 120kgs |
| Diesel Engine | 4.41kw @ 2600 r.p.m : model R175A |
| Electricity Motor | 4kw @ 1440 r.p.m |
