Hydraulic Motor Piston Drilling Mud Pump Well Drilling BW160
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Pressure: | 1.5-2 Mpa | Suction Pipe Dia: | φ51mm |
|---|---|---|---|
| Discharge Pipe Dia: | φ25mm | Displacement: | 160-120L/min |
| Highlight: | drilling rig mud pumps,mud pumps for drilling rigs |
||

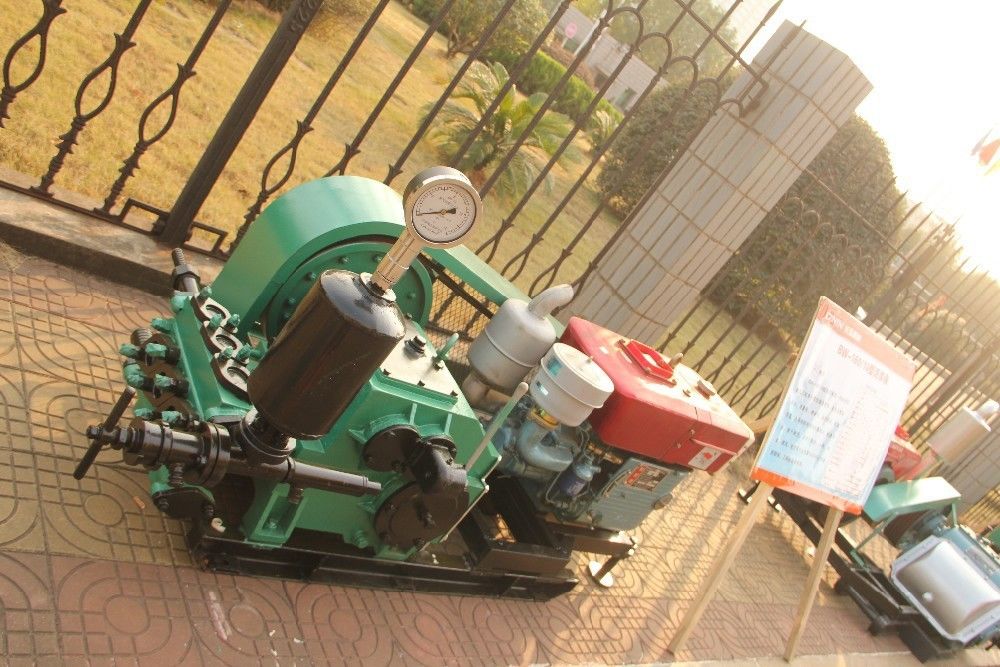

Hydraulic Motor Piston Drilling Mud Pump Well Drilling BW160
BW-160 MUD PUMP
BW-160 is a horizontal, three-cylinders single acting reciprocal piston pump. The pump body is made of aluminum alloy, so it’s very light and good for transportation. The pump has two speeds and it’s easy to operate.
| Cylinder Diameter | 65mm |
| Stroke | 70mm |
| Reciprocate Times | 245 190 times/min |
| Displacement | 160 120 L/min |
| Pressure | 1.5 2Mpa |
| Suction Pipe Dia | φ51mm |
| Discharge Pipe Dia | φ25mm |
| Dimension & Weight | 1200*550*580mm, 200kgs |
| Diesel Engine | 5.88kw @ 2200 r.p.m : model R185A |
| Electricity Motor | 5.5kw @ 1440 r.p.m |
