Product Details:
Payment & Shipping Terms:
|
Drilling Depth: | 2600m | Drilling Diameter: | 300mm |
---|---|---|---|
NET WEIGHT: | 4600kgs (without Power) | POWER: | Diesel Engine 90KW At 1500 R.p.m |
Highlight: | borehole drilling equipment,geotechnical drilling equipment |
diamond drilling machine core prospecting drilling rig,Best quality unique gold mining core sample drilling rig 2600m

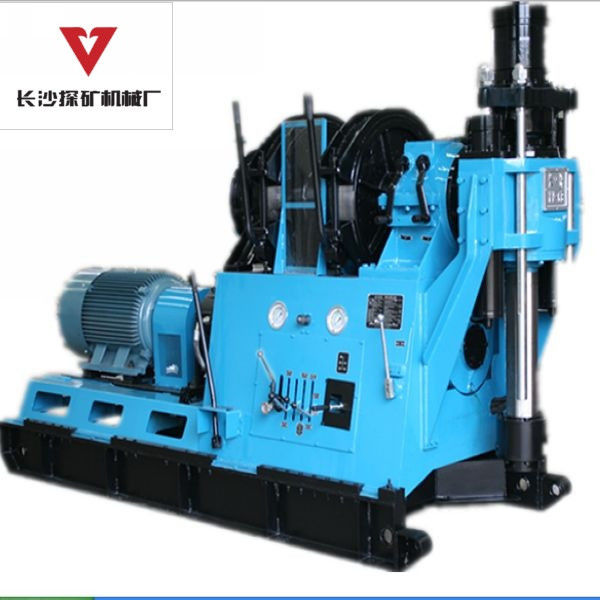

XY-6B CORE DRILLING RIG
DRILLING CAPACITY | Depth 1800m/HQ, 2400m/NQ, 2700m/BQ |
SWIVEL HEAD | |
Type | Twin cylinder, Oil-hydraulic feed system, Spindle type |
Angle Range | 360° |
Stroke of Spindle | 600mm |
Revolving Speed of Spindle | Forward 70:120:190:210:320:370:570:980r.p.m |
Reverse 45:138 r.p.m | |
Max. Spindle Torque | 8500N*m |
Max. Thrust Capacity | 150 kN |
Max. Balance Capacity | 200 kN |
Main Clutch | AUTOMOBILE GRADE |
AVAILABLE RODS | 50mm, PQ, HQ, NQ, BQ, AW, BW |
FRAME RETRACTION | 600mm |
HOIST DRUM | |
Type | Planetary grear, hand brake type |
Hoisting Capacity | 90 kN at single pull line |
Rope Speed | 0.77:1.33:2.07:3.55:2.35:4.00:6.28:10.77 m/s at single pull time |
Drum Capacity | Φ21.5mm × 120m |
OIL - HYDRAULIC | |
Type | Constant delivery, gear type pump |
Delivery Capacity | 63L/min @ 2500 r.p.m |
Max. Pressure | 8MPa |
POWER | Diesel engine 90KW at 1500 r.p.m |
Or electronic Motor, 75KW at 1480 r.p.m | |
NET WEIGHT | 4600kgs (without power) |
DIMENSION(L×W×H) | 4000 × 1350 ×2300mm |
