Triplex R Mud Pump Well Drilling For Medium Low Pressure Concrete Grouting
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Pressure: | 1-7 Mpa | Suction Pipe Dia: | φ51mm |
|---|---|---|---|
| Discharge Pipe Dia: | φ25mm | Displacement: | 32-150L/min |
| Highlight: | reciprocating plunger pump,mud water pump |
||
Triplex R Mud Pump Well Drilling For Medium Low Pressure Concrete Grouting

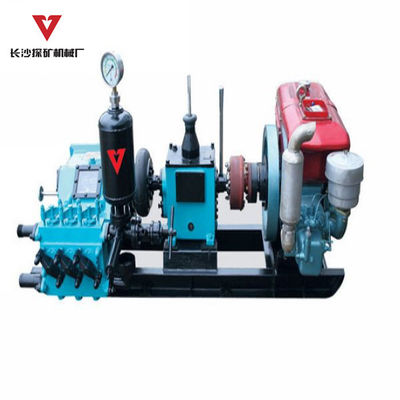

BW-150 MUD PUMP
BW-150 is a horizontal triplex reciprocal piston pump. It is suitable for less than 1500 meters diamond drilling in small diameter, also can be used for medium-low pressure concrete grouting.
| Cylinder Diameter | 70mm | ||
| Stroke | 70mm | ||
| Handler Position | I II III IV | I II III IV | |
| Pump Speed | 222 130 86 57 | 183 107 71 47 | times/min |
| Displacement | 150 90 58 38 | 125 72 47 32 | L/min |
| Pressure | 1.8 3.2 4.8 7.0 | 2.3 4.0 6.0 7.0 | Mpa |
| Input Power and Speed | 7.5 kW @ 1500 r.p.m | ||
| Suction Pipe dia | 51mm | ||
| Discharge Pipe dia | 25mm | ||
| Engine | ZS1105 diesel engine or electricity motor | ||
| Dimension & Weight |
1925*795*1150mm, 630 kgs(with diesel) 1840*795*995mm, 516 kgs(with electricity motor) |
||
